SCOM 2012 R2 Cross-Platform Agent: R2 vs SP1

In this blog post I will show what's different under the hood (at first glance) between the cross-platform agents of OpsMgr 2012 R2 and OpsMgr 2012 SP1. This post will probably be updated as I'll find more to share.

Both agents are running on Ubuntu 12.04.1 LTS. I use the root account for administration. I know, I should not use it, but hey what the heck. It's just a test environment. The SSH client I use is PuTTY.

Status Information

In both versions the 'scxadmin' tool is available.
When you run the command "scxadmin -status" you get the same kind of response. But you can see that the programs are replaced with OMI versions.

R2

Note the change in server and agent name (omi)

SP1

Version differences

Retrieved with scxadmin (still available in R2)
Command: scxadmin -version

R2

Version: 1.5.0-114

Agent Management (Console)

SP1

1.4.0-906

Agent Management (Console)

Files & Folders

There are noticeable differences in the binaries used in R2 and SP1. This is because of the change from OpenPegasus to OMI. Some binaries are still used but renamed, like 'cimcli'.

R2

R2: Less binaries than SP1, provider binaries removed. OMI has other tools for that.
See the OMI getting started guide: download here

SP1

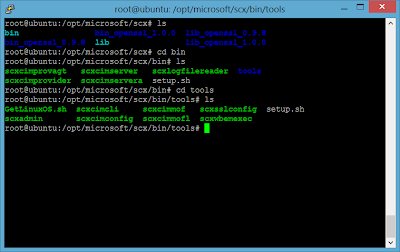

SP1: More and other binaries than R2

Using WS-Man

Microsoft stated that the upgrade to R2 is seamless except when using custom providers. So testing the response with WS-Man should return the same result.

For the test I use an Invoke example which I used earlier.

The property StdOut is still the same. This is the result of the command 'uname -a'.

The result is the same, but the XmlElement which is returned by the server has some slight body changes.

The XML response (minor diffs):

n1 => p

true => TRUE

URI => Changed to DMTF. So it looks like the interface is committed to use the DMTF schema.

R2

R2 WS-Man result: DMTF schema used

SP1

SP1 WS-Man result: Microsoft schema used

CIMCLI issue in R2

The cimcli tool is used in both OpenPegasus and OMI.

Microsoft renamed the tool from 'scxcimcli' to just 'cimcli'.

I found that the cimcli tool contained in the R2 agent (Ubuntu) does not work. SP1 does. It can't find the libomiclient.so file. Currently I haven't tested other agents for the other OS's to see if those contain the same issue. (Downloading Suse Enterprise Linux as we speak)

I tried all kind of things to get cimcli to work, but it keeps failing to run. I copied the lib directory contents to the bin contents, added omicli.conf to the conf directory, added .omiclirc to the cimcli directory.

Got that information from: http://cvs.opengroup.org/cgi-bin/viewcvs-omi.cgi/*checkout*/omi/doc/omi/omi.html?rev=HEAD&content-type=text/html#TOC16

Command: (scx)cimcli ns

This enumerates the available namespaces of the CIM server.

R2

Failure: libomiclient.so is missing

 SP1

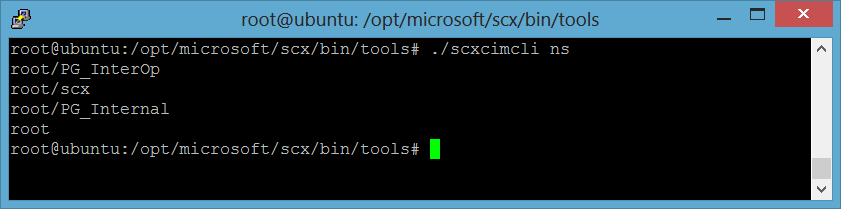

Microsoft's scx namespace. Also note the two Pegasus (PG) namespaces

If you have any feedback on my findings, please let me know.

SCOM 2012 R2 Cross-Platform (XPlat) OMI changes

OMI replaces OpenPegasus

One of the changes in the R2 release (expected fall 2013) is the change of management platform for the cross-platform agents to monitor Linux and UNIX systems. The supported cross-platform systems are: Linux (RedHat, SUSE, CentOS, Debian, Oracle and Ubuntu) and UNIX (AIX, HP-UX and Solaris).

In the current 2012 version the cross-platform agents are built-upon the OpenPegasus standard. This is an open-source implementation of DMTF CIM and WBEM.

With the focus on becoming a Cloud OS, Microsoft needed a new abstraction layer for standard-based management which could be used to manage different kind of devices and abstractions (from cloud to physical device). The current standard had some caveats that did not line up with Microsoft standards-based management vision for the future.
That’s why Microsoft decided to use OMI* (Open Management Infrastructure) to replace OpenPegasus in the cross-platform agents.

If you want to know more about Microsoft’s reasons for this change, read their blog: http://blogs.technet.com/b/windowsserver/archive/2012/06/28/open-management-infrastructure.aspx

Besides the benefits of using a new standards-based management interface for top-to-bottom management, OMI performs significantly better than its predecessor. The footprint is smaller, making it better suitable for mobile devices.

* Previously known as NanoWBEM
More info on OMI: https://collaboration.opengroup.org/omi/

Seamless upgrade

Upgrading to SCOM 2012 R2 is seamless. The same goes for your own cross-platform Management Packs using the standard Microsoft provider (root\scx). As long as you used the Management Pack Types and provider which came out-of-the-box there is nothing to be worried about.

What's affected?

Management Packs that use OpenPegasus providers will not be compatible with the new agents. Vendors or customers who have written custom OpenPegasus provider have to rebuild their management packs to be based on the new OMI framework. If customers don’t upgrade to those new Management Packs or vendors are unable to redo their Management Packs, your upgrade to SC 2012 R2 will render that monitoring unusable, and errors might occur. For what I've seen, management packs from vendors like NiCE and Bridgeways use their own custom OpenPegasus providers.

Other options

Some cross-platform management packs do not make use of custom providers. One of those is the Oracle MP from OpsLogix.

For a limited time they offer a free upgrade to their pack which is easy to install and clears the way for upgrading to OpsMgr 2012 R2. This management pack uses watcher nodes, which can offload your management servers, which are usually burdened with monitoring the cross-platform instances.

SCOM 2012 R2 (Preview) changes

I'm currently looking into the changes coming with the R2 release of SCOM 2012 R2.

A lot of new features are presented with this new release. Features like 360 Fabric Monitoring and better integration with VMM give administrations a complete overview of their private cloud. Extended with the updated Azure management pack, you now can complement this overview.

User experience is enhanced by improved dashboards performance. A very nice welcome feature is Java APM (Application Performance Monitoring), this will have the same experience as the existing .NET APM monitoring capabilities. Java APM allows you to monitor application performance from a server and client side perspective.

For what I've read about Java APM, it's not exactly the same as .NET APM, (byte-code instrumentation as someone called it)

Together with enhanced IntelliTrace support and improved TFS integration this will help your DevOps strategy to bring development and application management closer together.

Microsoft decided to change the cross-platform management interface. This could impact you, if you develop cross-platform management packs. See my next blog for that.

Want to see it for yourself? Download the evaluation package: http://technet.microsoft.com/en-US/evalcenter/dn205295.aspx

Need to convince your manager to get budget for upgrading to R2? Get the white paper here :)

SCOM: Invoke method on cross-platform agents with PowerShell

In this post i'll show you how a cross-platform agent can be tested. This is something which Daniele Muscetta already found out. But I also wanted to know how I could troubleshoot cross-platform agents, to test, for example, why a specific workflow like 'run a ssh command' would not work from a management pack. And yes, PowerShell can be used for that, with the Invoke-WSManAction cmdlet.

About Cross-Platform Agents

For those who ever have worked with the cross-platform agents in SCOM, you probably know that they work different than the Windows agents.

Where Windows Agents run their workflows locally on the client, the workflows for cross-platform/xplat agents are ran from the Management Servers.

Windows systems support different ways of remote connecting, not present in cross-platform systems. Cross-platform agents are actually listeners based on WS-Man, Web Services-Management. This makes use of a SOAP-based protocol.

When the Management Server starts a workflow, it connects to the cross-platform agent through WS-Man. It retrieves the required information and processes the returned information.


Connecting with cross-platform agents

I'll won't copy the post of Daniele Muscetta here. These are the main requirements when connecting from any client other than a management server. If you don't use this option, you'll have to add the agent to the trusted hosts list of the WS-Man client on the computer you are working on and allow unencrypted traffic.

• Connecting over SSL
• Download the agent's certificate (which is signed by the management server) with SCP (use WinSCP or FileZilla)
• Rename to .cer
• Open this certificate on the management server which installed the agent. This is because this server signed the certificate.
• Open the details tab, get the Root CA certificate, export it to a .cer file
• Add certificate to Trusted Root Certificate Authorities on your workstation's computer certificate store.

Or

• Untrusted connection (by default disabled for the WS-Man Windows client)
• Open Powershell (as Administrator)
• Enter: set-item WSMan:\localhost\Client\AllowUnencrypted "true"
• Enter: set-item WSMan:\localhost\Client\TrustedHosts ""

Time to play

To test a cross-platform agent with PowerShell I use the following cmdlets:

• Test-WSMan - Test whether a connection can be made
• Invoke-WSMan - Invoke an action that is accepted by the agent

Test-WSMan -computer linuxhost.contoso.local -port 1270 -authentication basic -credential (Get-Credential) -UseSSL

The output of the command is show above. The cmdlet shows the properties of the Cross-Platform agent.

Invoke-WSManAction -Action ExecuteCommand -Authentication Basic -ComputerName "linuxhost.contoso.local" -Credential (Get-Credential) -Port 1270 -ResourceURI http://schemas.microsoft.com/wbem/wscim/1/cim-schema/2/SCX_OperatingSystem?__cimnamespace=root/scx -UseSSL -ValueSet @{command="uname -a";timeout=30}

In this example I invoke the action "ExecuteCommand". For this cmdlet to work you need to add a ValueSet. These are the arguments for the ExecuteCommand method. I found the right syntax by trial and error. The need to be entered as a hashtable.
In this case, the arguments are 'command' and 'timeout'.

Technical documentaton about the Methods and the necessary arguments: http://technet.microsoft.com/en-us/library/dd789056.aspx. (not the best documented features sadly).

You can also take a look at the MP library: Microsoft.Unix.Library.mp

Links

http://www.muscetta.com/2009/06/01/using-the-scx-agent-with-wsman-from-powershell-v2/

http://www.muscetta.com/2009/10/26/invoking-methods-on-the-xplat-agent-with-winrm/

http://operatingquadrant.com/2010/02/04/operations-manager-cross-platform-authoring-invoke-action-monitor/
